Heidelberg XL105
Replacement cylinder jackets for Heidelberg Speedmaster XL105 presses.
LMC Jackets provide a high-quality alternative to Heidelberg PerfectJacket, PerfectJacket Plus and OEM transfer cylinder jackets.
10th gen coating • International supply • Technical support • Impression guarantee
Jackets for Heidelberg XL105
LMC Jackets are available for the two key jacket types on your press:
Impression cylinder jackets
Alternatives to Heidelberg PerfectJacket or PerfectJacket Plus used on impression cylinders on perfecting configurations.
Transfer cylinder jackets
Replacement for the XL105 TransferJacket or TransferJacket Blue, including HDM: F3.215.201N

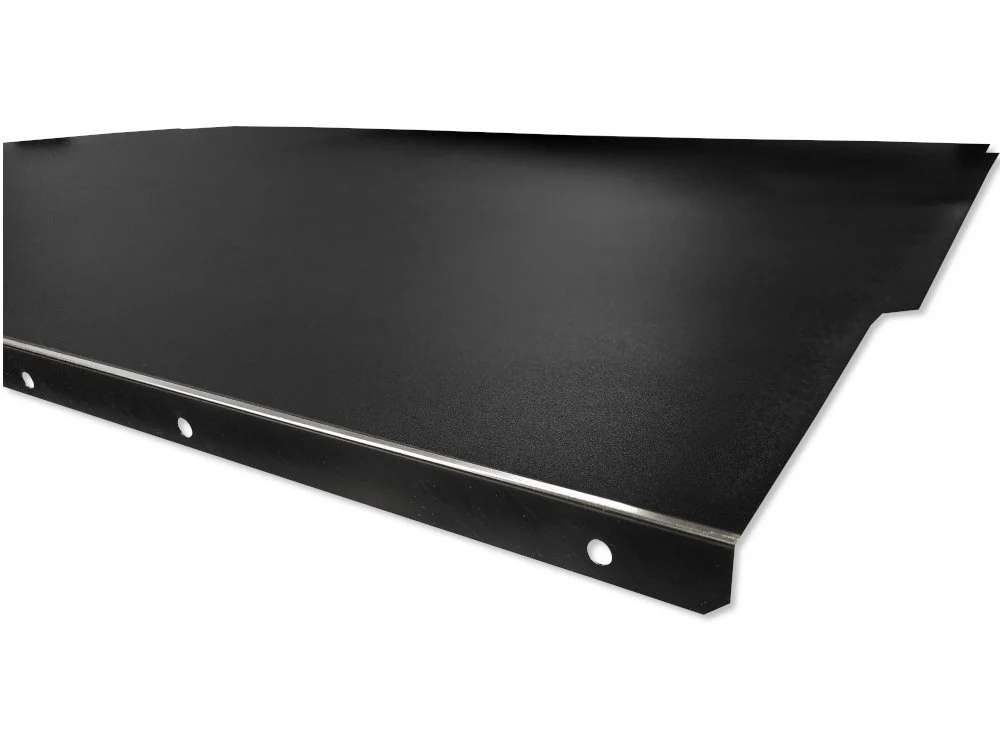

Heidelberg XL105 Impression Cylinder Jackets
LMC Impression Jackets available for the following Heidelberg specifications to replace PerfectJacket, PerfectJacket Plus and PerfectJacket Blue on Speedmaster XL105.
| LMC Code | Press Model | Thickness (μm) | OEM Reference |
|---|---|---|---|
| HX300 | Heidelberg XL105 | 296-300 | F2.581.184N, F2.581.194N |
| HX305 | Heidelberg XL105 | 301-305 | F2.581.185N, F2.581.195N |
| HX310 | Heidelberg XL105 | 306-310 | F2.581.186N, F2.581.196N |
| HX315 | Heidelberg XL105 | 311-315 | F2.581.187N, F2.581.197N |
How to Identify the Correct Jacket for Heidelberg XL105
When replacing perfecting jackets on a Heidelberg XL105, the press parts list will usually show the required replacements under the references F2.581.183 or F2.581.193.
These act as umbrella references covering the different jacket thicknesses listed above. The correct thickness depends on the profile of each printing unit.
The easiest way to identify the jacket currently fitted is to check the etched information on the existing jacket. Clean the area between the grippers on the drive-side lead edge to reveal the jacket specification.
Can’t make sense of what you find? Send us the reference or a clear photograph of the etching and we can help identify the correct LMC replacement.

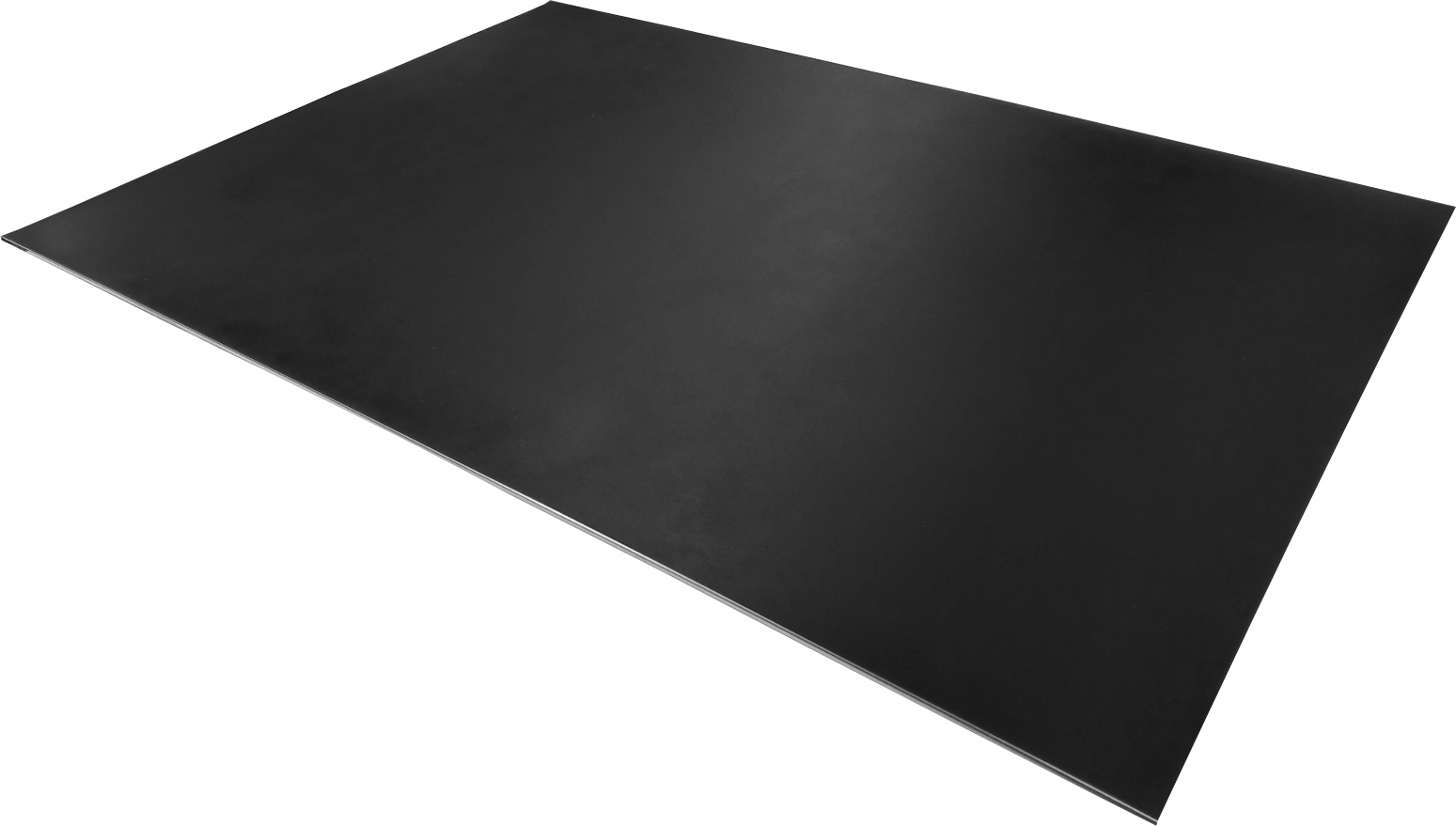

Heidelberg XL105 Transfer Cylinder Jackets
Alternative to: F3.215.201N
LMC Jackets available for the following Heidelberg specifications to replace Heidelberg TransferJacket, TransferJacket Blue, and other after market parts on Speedmaster XL106.
| Specification | Transfer Jacket |
|---|---|
| Press | Heidelberg XL105 |
| Jacket Type | Transfer cylinder jacket |
| LMC Jacket | LMC-HX-LTT |
| Heidelberg Ref | F3.215.201N |
| Overall Thickness | 0.296-0.300mm |
