Komori Impression Jackets

LMC Impression Jackets are available for the following Komori presses and references:

All models also available as plain steel jackets for UV or LED UV presses.

LMC Code
Press Model
Thickness (μm)
OEM Reference

700-KATL-40SP300742-3202-500

KATKL40SP411-420742-3202-403

KAT2KL-40P411-420742-3202-401

KABL-40P/L-40SP411-420742-3251-303

KA2BL-40P/L-40SP411-420742-3251-301

KAXXL-40P300IGS-3234-112

700-KSATLS-40SP350714-3200-800

KSATKLS40P/LS-40SP411-420GFH-3200-201

KSABLS-40SP411-420714-3250-600

KLII40LII-40411-420492-3263-209

KAGG-40P411-420GFH-3200-201

KAGLXGLX-840RP420CA-75631-P00

KAGXGX-40RP/GLX-840RP411-420CA-75631-P00

700-KBTL-44SP300752-3202-900

KBTL-44SP411-420752-3202-003

KB2TL-44SP411-420752-3202-001

KBBL-44SP411-420752-3250-903

KB2BL-44SP411-420752-3250-903

700-KSBTLS-44SP350724-3200-300

KSBTLS-44SP411-420724-3200-400

KSBBLS-44SP411-420724-3250-300

KRATL-40RP509-521481-3247-022

KRABL-40RP509-521481-3247-022

KL40RPL-40RP509-521481-3247-022

KL44RPL-44RP509-521514-3219-203

KRBTL-44RP509-521514-3219-203

KRBBL-44RP509-521514-3219-203

700-KL26PL-26P300SFU-3202-200

700-K26PL-26P300SFU-3202-200

KL26PL-26P411-420SFU-3305-200

K26PL-26P411-420SFU-3305-200

KNL26PNL-26P/LS-26P411-420364-3200-500

KS26PS-26P361-370SGA-3802-S03

KSII26PPSII-26P411-420SGF-3802-200

KSII26PS-26P/SII-26P411-420824-3200-200

700-KL28PL-28P300SFV-3202-200

K-28PL-28P411-420SFV-3203-200

K28PL-28P300SFV-3202-200

KS28PS-28P/SII-28P411-420SGG-3803-201

KS2II28PSII-28P411-420SGG-3803-200

KSP-28PSprint-28P411-420SGG-3803-201

KS/GS28PGS-28P411-420SGG-3803-201

KGS28PGS-28P411-420SGG-3803-201

KN28 PNL-28P361-370SFV-3202-200

KNL28PNL-28P361-370394-3200-401

KLS29PLS-29P361-370834-3200-301

KLS29PPLS-29P361-370834-3200-401

K29PSPICA-29P411-420345-3500-803

K29SPICA-29P361-370345-3500-803

KSP29PWSPICA-29PW411-420345-3500-803

Video

Install Example

Komori Lithrone 40 Perfector

Example LMC Jacket installation for Komori L840P.

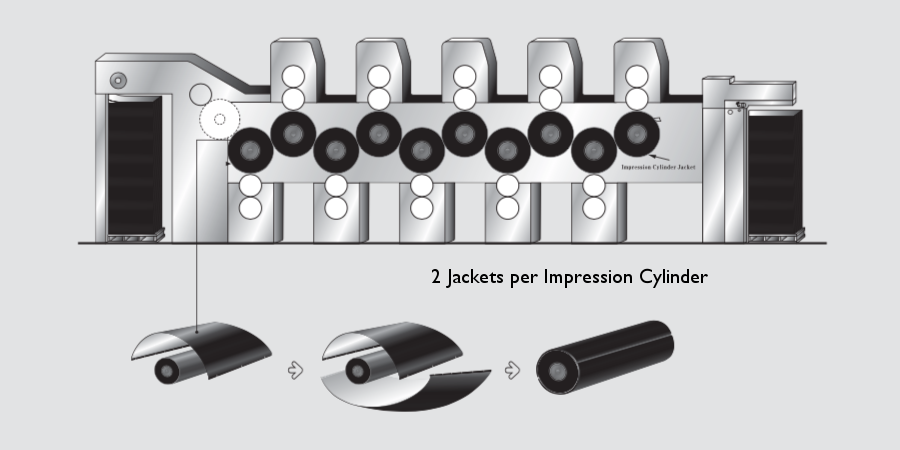

Impression Jacket install example on Komori L40P 8 colour on 4 units close to delivery.

Komori LS 40 Super Perfector

Example LMC Jacket installation for Komori LS540SP.

Impression jacket example on Komori LS40P 2 jackets per cylinder.

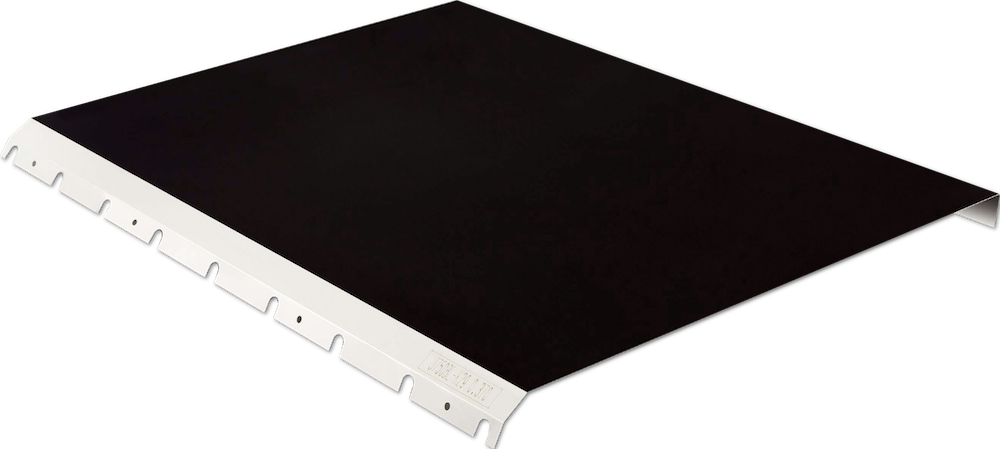

Plain Steel Komori Impression Jacket — Plain Steel

Plain steel impression cylinder jackets for Komori presses also available

Request Quote

Complete the form below to request your LMC Jacket quotation.

Komori Quote

Name

First Name

Last Name

Company

Country

Phone

Website

http://

Press Make

Press Model

Further Comments

LMC Code	Press Model	Thickness (μm)	OEM Reference
700-KAT	L-40SP	300	742-3202-500
KATK	L40SP	411-420	742-3202-403
KAT2K	L-40P	411-420	742-3202-401
KAB	L-40P/L-40SP	411-420	742-3251-303
KA2B	L-40P/L-40SP	411-420	742-3251-301
KAXX	L-40P	300	IGS-3234-112
700-KSAT	LS-40SP	350	714-3200-800
KSATK	LS40P/LS-40SP	411-420	GFH-3200-201
KSAB	LS-40SP	411-420	714-3250-600
KLII40	LII-40	411-420	492-3263-209
KAG	G-40P	411-420	GFH-3200-201
KAGLX	GLX-840RP	420	CA-75631-P00
KAGX	GX-40RP/GLX-840RP	411-420	CA-75631-P00
700-KBT	L-44SP	300	752-3202-900
KBT	L-44SP	411-420	752-3202-003
KB2T	L-44SP	411-420	752-3202-001
KBB	L-44SP	411-420	752-3250-903
KB2B	L-44SP	411-420	752-3250-903
700-KSBT	LS-44SP	350	724-3200-300
KSBT	LS-44SP	411-420	724-3200-400
KSBB	LS-44SP	411-420	724-3250-300
KRAT	L-40RP	509-521	481-3247-022
KRAB	L-40RP	509-521	481-3247-022
KL40RP	L-40RP	509-521	481-3247-022
KL44RP	L-44RP	509-521	514-3219-203
KRBT	L-44RP	509-521	514-3219-203
KRBB	L-44RP	509-521	514-3219-203
700-KL26P	L-26P	300	SFU-3202-200
700-K26P	L-26P	300	SFU-3202-200
KL26P	L-26P	411-420	SFU-3305-200
K26P	L-26P	411-420	SFU-3305-200
KNL26P	NL-26P/LS-26P	411-420	364-3200-500
KS26P	S-26P	361-370	SGA-3802-S03
KSII26PP	SII-26P	411-420	SGF-3802-200
KSII26P	S-26P/SII-26P	411-420	824-3200-200
700-KL28P	L-28P	300	SFV-3202-200
K-28P	L-28P	411-420	SFV-3203-200
K28P	L-28P	300	SFV-3202-200
KS28P	S-28P/SII-28P	411-420	SGG-3803-201
KS2II28P	SII-28P	411-420	SGG-3803-200
