Heidelberg SX74
Replacement cylinder jackets for Heidelberg Speedmaster SX74 presses.
LMC Jackets provide a high-quality alternative to Heidelberg PerfectJacket, PerfectJacket Plus and OEM transfer cylinder jackets.
10th gen coating • International supply • Technical support • Impression guarantee
Jackets for Heidelberg SX74
LMC Jackets are available for the two key jacket types on your press:
Impression cylinder jackets
Alternatives to Heidelberg PerfectJacket or PerfectJacket Plus used on impression cylinders on perfecting configurations.
Transfer cylinder jackets
Replacement for the SX74 TransferJacket or TransferJacket Blue, including HDM: DS.215.105N and M2.215.105N
Heidelberg SX74 Impression Cylinder Jackets
LMC Impression Jackets available for the following Heidelberg specifications to replace PerfectJacket and PerfectJacket Plus on Speedmaster SX74.
| LMC Code | Press Model | Thickness (μm) | OEM Reference |
|---|---|---|---|
| H74 300 | Heidelberg SX74 | 296-300 | M2.581.184N, M2.581.194N |
| H74 305 | Heidelberg SX74 | 301-305 | M2.581.185N, M2.581.195N |
| H74 310 | Heidelberg SX74 | 306-310 | M2.581.186N, M2.581.196N |
| H74 315 | Heidelberg SX74 | 311-315 | M2.581.187N, M2.581.197N |
How to Identify the Correct Jacket for Heidelberg SX74
When replacing perfecting jackets on a Heidelberg SX74, the press parts list will usually show the required replacements under the references M2.581.183 or M2.581.193
These act as umbrella references covering the different jacket thicknesses listed above. The correct thickness depends on the profile of each printing unit.
The easiest way to identify the jacket currently fitted is to check the etched information on the existing jacket. Clean the area between the grippers on the drive-side lead edge to reveal the jacket specification.
Can’t make sense of what you find? Send us the reference or a clear photograph of the etching and we can help identify the correct LMC replacement.

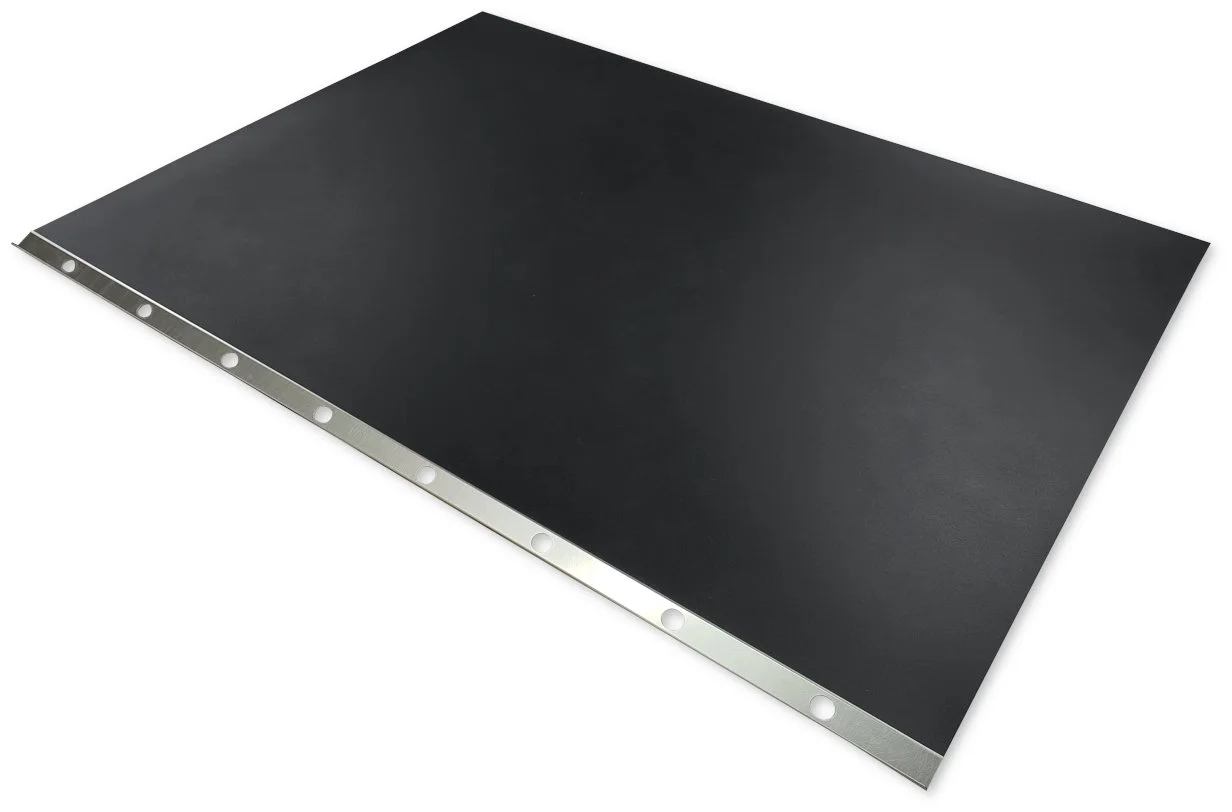

Heidelberg SX74 Transfer Cylinder Jackets
Alternative to: DS.215.105 and M2.215.105
LMC Jackets available for the following Heidelberg specifications to replace Heidelberg TransferJacket, TransferJacket Blue, and other after market parts on Speedmaster SX74.
| Specification | Transfer Jacket |
|---|---|
| Press | Heidelberg SX74 |
| Jacket Type | Transfer cylinder jacket (U1 - Adjustable cylinder) |
| LMC Jacket | LMC-SX74T |
| Heidelberg Ref | DS.215.105N |
| Overall Thickness | 0.295-0.300mm |
| Specification | Transfer Jacket |
|---|---|
| Press | Heidelberg SX74 |
| Jacket Type | Transfer cylinder jacket (U1/3, U2 after perfecting) |
| LMC Jacket | LMC-H74T |
| Heidelberg Ref | M2.215.105N / M2.215.105S |
| Overall Thickness | 0.295-0.300mm |
