Heidelberg SX102
Replacement cylinder jackets for Heidelberg Speedmaster SX102 presses.
LMC Jackets provide a high-quality alternative to Heidelberg PerfectJacket, PerfectJacket Plus and OEM transfer cylinder jackets.
10th gen coating • International supply • Technical support • Impression guarantee
Jackets for Heidelberg SX102
LMC Jackets are available for the two key jacket types on your press:
Impression cylinder jackets
Alternatives to Heidelberg PerfectJacket or PerfectJacket Plus used on impression cylinders on perfecting configurations.
Transfer cylinder jackets
Replacement for the SM102 TransferJacket or TransferJacket Blue, including HDM: TC.215.201N
Heidelberg SX102 Impression Cylinder Jackets
LMC Impression Jackets available for the following Heidelberg specifications to replace PerfectJacket and PerfectJacket Plus on Speedmaster SX102.
| LMC Code | Press Model | Thickness (μm) | OEM Reference |
|---|---|---|---|
| HA300 | Heidelberg SX102 | 296-300 | S9.581.184N, TC.581.194N |
| HA305 | Heidelberg SX102 | 301-305 | S9.581.185N, TC.581.195N |
| HA310 | Heidelberg SX102 | 306-310 | S9.581.186N, TC.581.196N |
| HA315 | Heidelberg SX102 | 311-315 | S9.581.187N, TC.581.197N |
How to Identify the Correct Jacket for Heidelberg SX102
When replacing perfecting jackets on a Heidelberg SX102, the press parts list will usually show the required replacements under the references S9.581.183 or TC.581.193.
These act as umbrella references covering the different jacket thicknesses listed above. The correct thickness depends on the profile of each printing unit.
The easiest way to identify the jacket currently fitted is to check the etched information on the existing jacket. Clean the area between the grippers on the drive-side lead edge to reveal the jacket specification.
Can’t make sense of what you find? Send us the reference or a clear photograph of the etching and we can help identify the correct LMC replacement.

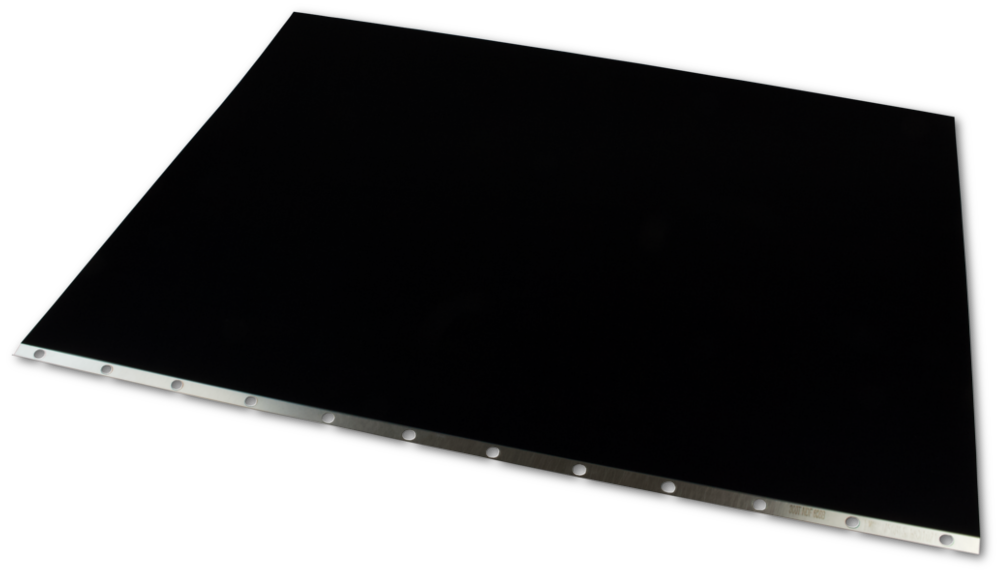

Heidelberg SX102 Transfer Cylinder Jackets
Alternative to: TC.215.201N
LMC Jackets available for the following Heidelberg specifications to replace Heidelberg TransferJacket, TransferJacket Blue, and other after market parts on Speedmaster SX102.
| Specification | Transfer Jacket |
|---|---|
| Press | Heidelberg SX102 |
| Jacket Type | Transfer cylinder jacket |
| LMC Jacket | LMC-SX102T |
| Heidelberg Ref | TC.215.201N |
| Overall Thickness | 0.295-0.300mm |
