Heidelberg SM102



Replacement cylinder jackets for Heidelberg Speedmaster SM102 presses.

LMC Jackets provide a high-quality alternative to Heidelberg PerfectJacket, PerfectJacket Plus and OEM transfer cylinder jackets.

Request Quote
View SM102 Jackets Options ↓

10th gen coating • International supply • Technical support • Impression guarantee

Jackets for Heidelberg SM102

LMC Jackets are available for the two key jacket types on your press:

Impression cylinder jackets

Alternatives to Heidelberg PerfectJacket or PerfectJacket Plus used on impression cylinders on perfecting configurations.

→ Jump down

Transfer cylinder jackets

Replacement for the SM102 TransferJacket or TransferJacket Blue, including HDM: S8.215.201N, S8.215.201S

→ Jump down

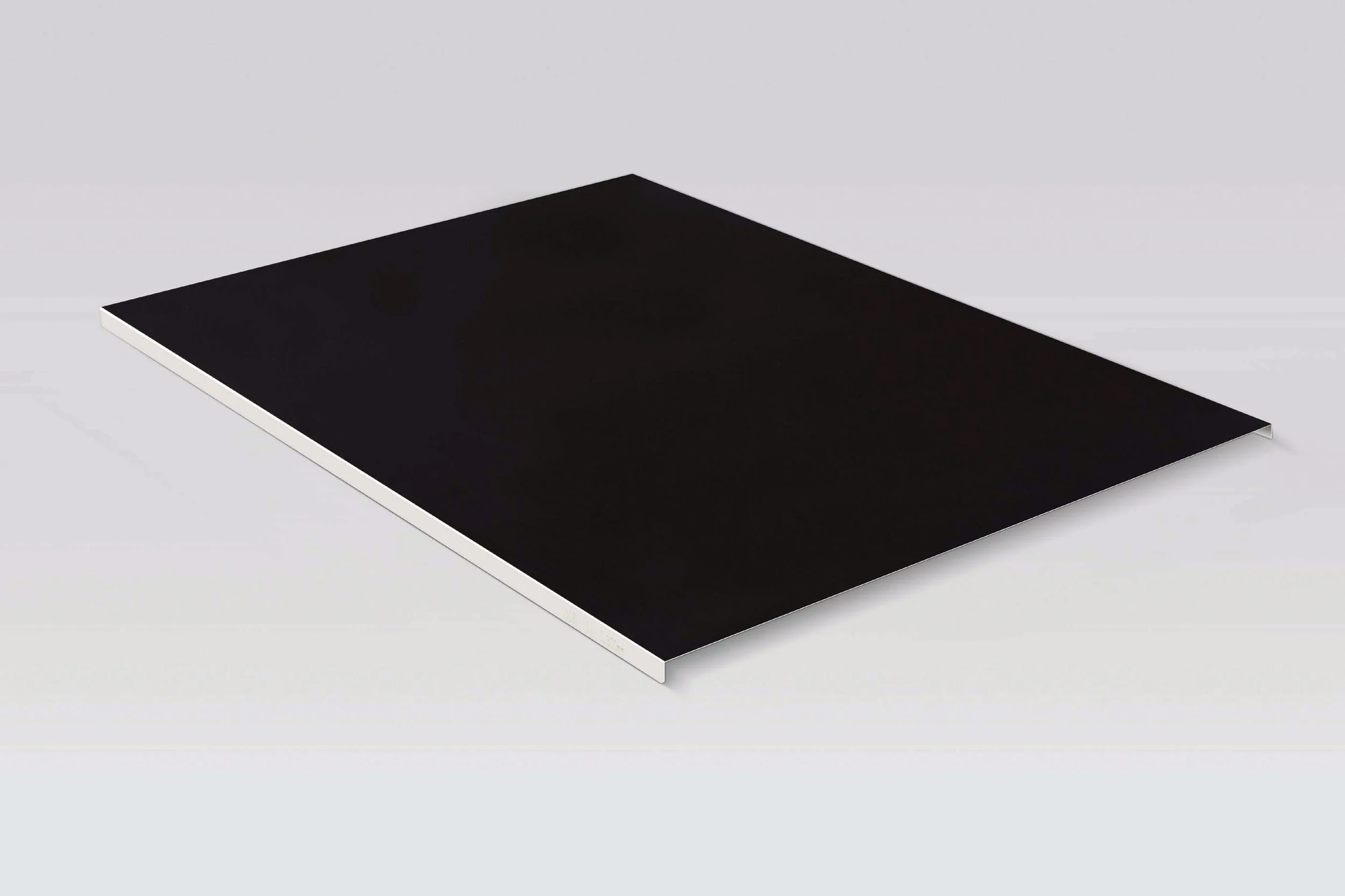

Heidelberg SM102 Impression Cylinder Jackets

LMC Impression Jackets available for the following Heidelberg specifications to replace PerfectJacket and PerfectJacket Plus on Speedmaster 102.

LMC Code Press Model Thickness (μm) OEM Reference
HA255Heidelberg SM102250-255S8.581.184N
HA260Heidelberg SM102256-260S8.581.185N
HA265Heidelberg SM102261-265S8.581.186N
HA270Heidelberg SM102266-270S8.581.187N
HA300Heidelberg SM102296-300S9.581.184N
HA305Heidelberg SM102301-305S9.581.185N
HA310Heidelberg SM102306-310S9.581.186N
HA315Heidelberg SM102311-315S9.581.187N
HA340Heidelberg SM102320-340SA.581.183N

How to Identify the Correct Jacket for Heidelberg SM102

When replacing perfecting jackets on a Heidelberg SM102, the press parts list will usually show the required replacements under the references S8.581.183 or S9.581.183.

These act as umbrella references covering the different jacket thicknesses listed above. The correct thickness depends on the profile of each printing unit.

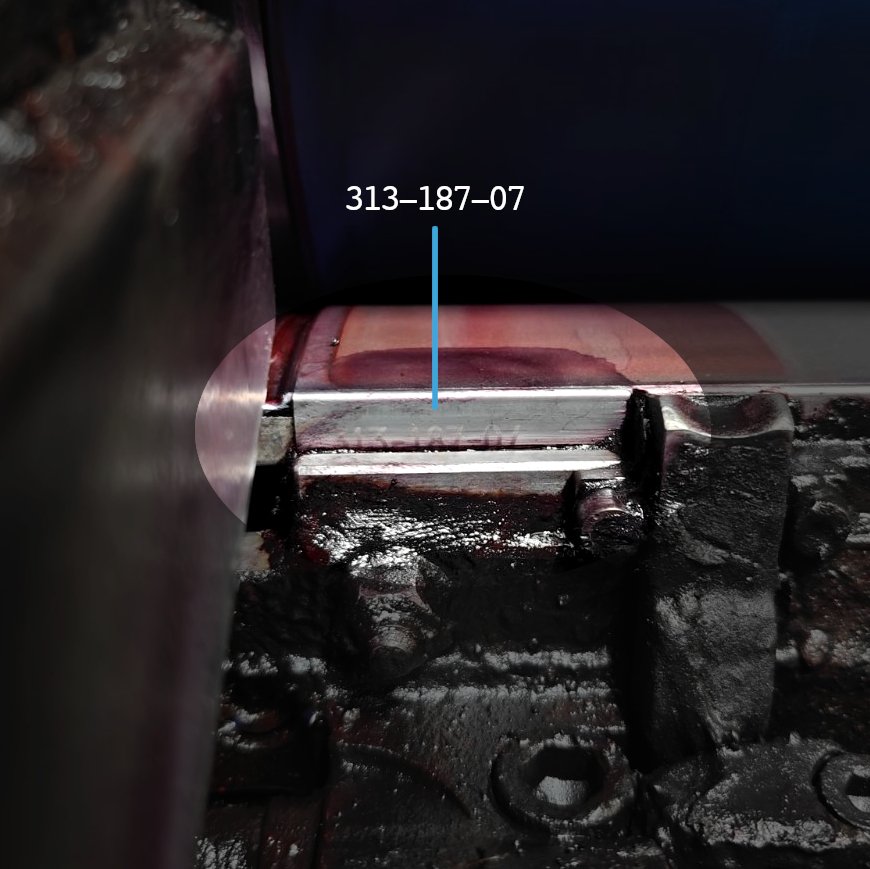

The easiest way to identify the jacket currently fitted is to check the etched information on the existing jacket. Clean the area between the grippers on the drive-side lead edge to reveal the jacket specification.

Can’t make sense of what you find? Send us the reference or a clear photograph of the etching and we can help identify the correct LMC replacement.

Heidelberg SM102 Transfer Cylinder Jackets

Alternative to: S8.215.201, S9.215.201

LMC Jackets available for the following Heidelberg specifications to replace Heidelberg TransferJacket, TransferJacket Blue, and other after market parts on Speedmaster 102.

Specification Transfer Jacket
PressHeidelberg SM102
Jacket TypeTransfer cylinder jacket
LMC JacketLMC-HAT-R
Heidelberg RefS8.215.201 / S9.215.201
Overall Thickness0.295-0.300mm
