Heidelberg CD74
Replacement cylinder jackets for Heidelberg Speedmaster CD74 presses.
LMC Jackets provide a high-quality alternative to Heidelberg PerfectJacket, PerfectJacket Plus and OEM transfer cylinder jackets.
10th gen coating • International supply • Technical support • Impression guarantee
Jackets for Heidelberg CD74
LMC Jackets are available for the two key jacket types on your press:
Impression cylinder jackets
Alternatives to Heidelberg PerfectJacket or PerfectJacket Plus used on impression cylinders on perfecting configurations.
Transfer cylinder jackets
Replacement for the CD74 TransferJacket or TransferJacket Blue, including HDM: L8.215.105N
Heidelberg CD74 Impression Cylinder Jackets
LMC Impression Jackets available for the following Heidelberg specifications to replace PerfectJacket, PerfectJacket Plus and PerfectJacket Blue on Speedmaster CD74.
| LMC Code | Press Model | Thickness (μm) | OEM Reference |
|---|---|---|---|
| HX75 300 | Heidelberg CD74 | 296-300 | L2.581.184N |
| HX75 305 | Heidelberg CD74 | 301-305 | L2.581.185N |
| HX75 310 | Heidelberg CD74 | 306-310 | L2.581.186N |
| HX75 315 | Heidelberg CD74 | 311-315 | L2.581.187N |
How to Identify the Correct Jacket for Heidelberg CD74
When replacing perfecting jackets on a Heidelberg CD74, the press parts list will usually show the required replacements under the reference L2.581.183.
These act as umbrella references covering the different jacket thicknesses listed above. The correct thickness depends on the profile of each printing unit.
The easiest way to identify the jacket currently fitted is to check the etched information on the existing jacket. Clean the area between the grippers on the drive-side lead edge to reveal the jacket specification.
Can’t make sense of what you find? Send us the reference or a clear photograph of the etching and we can help identify the correct LMC replacement.

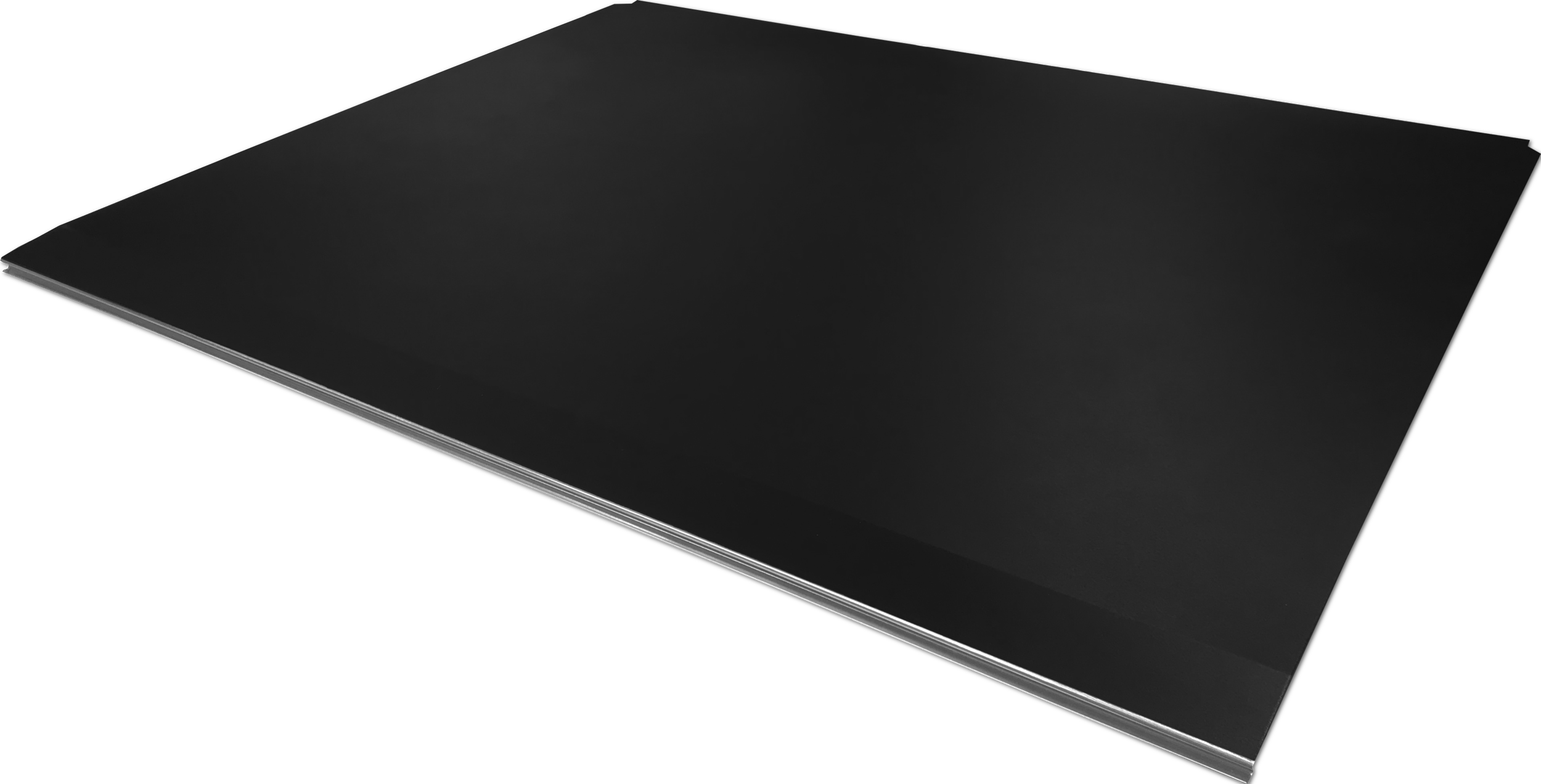

Heidelberg CD74 Transfer Cylinder Jackets
Alternative to: L8.215.105N
LMC Jackets available for the following Heidelberg specifications to replace Heidelberg TransferJacket, TransferJacket Blue on Speedmaster CD74.
| Specification | Transfer Jacket |
|---|---|
| Press | Heidelberg CD74 |
| Jacket Type | Transfer cylinder jacket |
| LMC Jacket | LMC-HX75-TT |
| Heidelberg Ref | L8.215.105N |
| Overall Thickness | 0.296-0.300mm |
Video

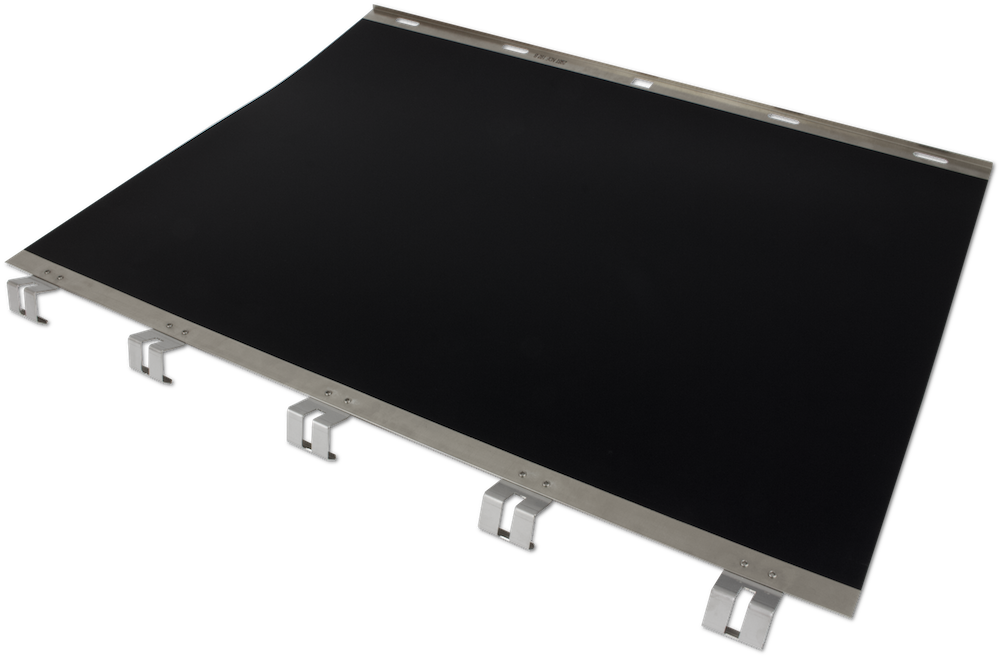

Reversal Cylinder Jackets
Alternatives to: L2.583.105
LMC Jackets available for the following Heidelberg specifications to replace Heidelberg TransferJacket, TransferJacket Blue on Speedmaster CD74.
| Specification | Transfer Jacket |
|---|---|
| Press | Heidelberg CD74 |
| Jacket Type | Reversal cylinder jacket |
| LMC Jacket | LMC-HX75-TB |
| Heidelberg Ref | L2.583.105N |
| Overall Thickness | 0.296-0.300mm |
